eVideo React
Video espacialización en directo /
Video Live spatialization
Características / Features
Video hardware
Hardware para Video para /Video hardware for:
3 Pantallas simultáneas (con tarjeta gràfica dedicada) / 3 simultaneous screens
Mac y PC con Max cycling software

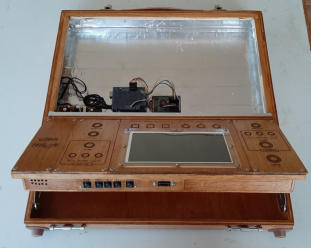

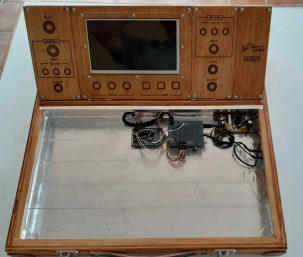

Construcción enteramente en madera, con botones capacitivos directamente en la
madera (ver fotografías de construcción) / Entirely wood construction, with capacitive
buttons directly on the wood (see construction photographs)
3 Cámaras simultáneas / 3 simultaneous cameras
40 Presets
More of 40 recorded video sequences (need a tablet for this).

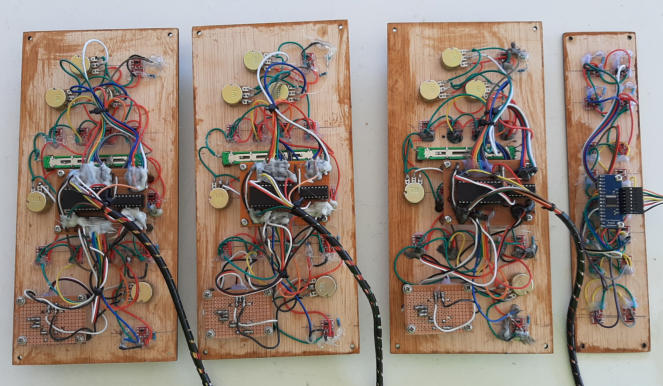

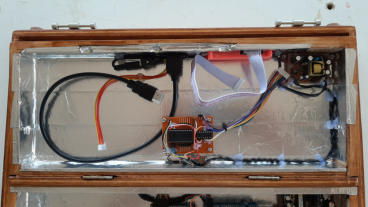

Eletronics
Interface with Arduino Mega with 11 multiplexer.
(directly connected to Mac or PC with Max app via USB 2.0 (dont need additional drivers))
Tres módulos independientes, uno por pantalla /Three independent modules,
any one for screen

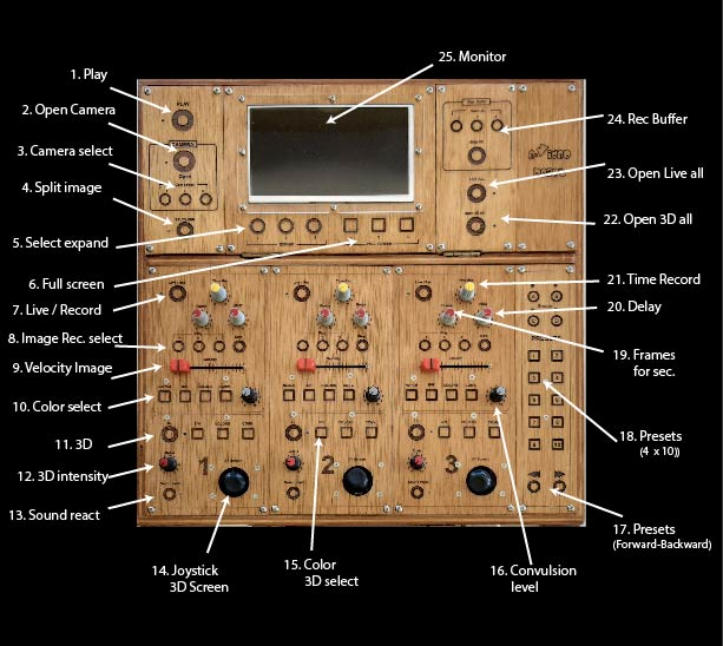

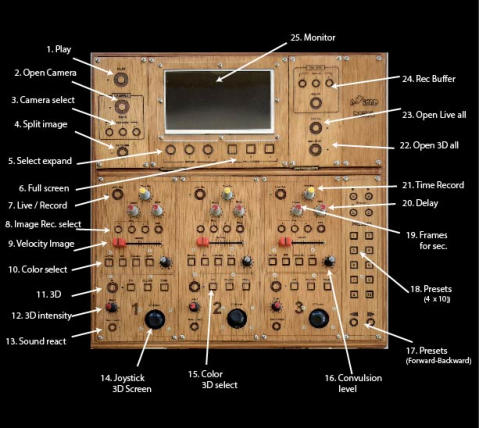

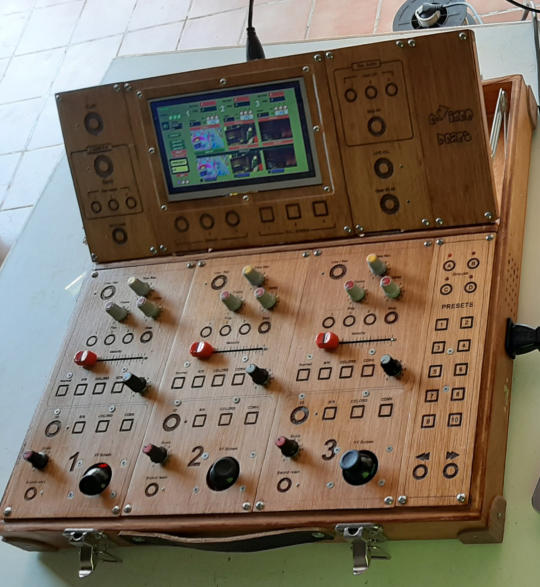

1. Play button wood capacitive
2.- On/off Camera button wood capacitive
3.- Camera select 3 buttons wood capacitives
4.- Split image button wood capacitive
5.- Select expand 3 buttons wood capacitives
6.- Full screen 3 buttons wood capacitives
7.- Live or Record select button wood capacitive
8.- Live record images 1,2,3 and Stop, 4 buttons wood capacitives
9.- Velocity ¡f image slider
10.-Color select: normal, B/W, Color, Convulse, 4 buttons wood capacitives
11.- 3D on/off button wood capacitive
12.- 3D intensity potentiometer
13.- Sound react button wood capacitive
14.- Joystick 3 screen
15.-Color 3D select: Normal, B/W, convulsion, 3 buttons wood capacitives
16.- Convulsion level potentiometer
17.- Presets forward-backward button wood capacitive
18.- Presets, 10 presets on 4 subgroups button wood capacitives
19.- Frames for second potentiometer
20.- Delay potentiometer
21.- Time record potentiometer
22.- Open 3D All button wood capacitive
23- Open Live All button wood capacitive
24.- Record Buffer 1,2,3 and stop, 4 buttons wood capacitives
25.- LCD Monitor
Hardware
eVideo React
Wood tom

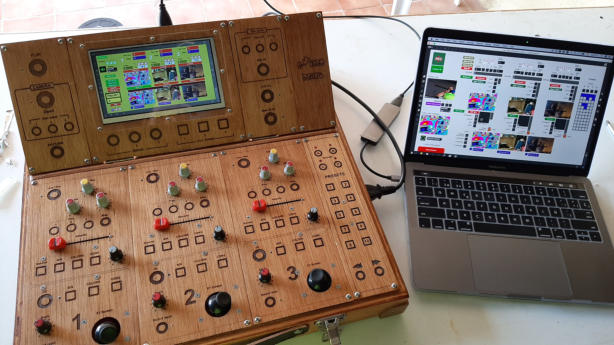

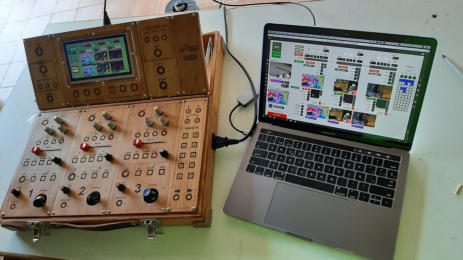

Qué es eVideo React ? /What is the eVideo React?
Es un interface para modificar el video en directo.
Puede combinar 3 pantallas y 3 cámaras simultáneas, además de videos pregrabados.
La capacidad de reacción dependerá de la memória del ordenador y de la tarjeta externa
utilizada.
El módulo permite modificar de modo versátil y ágil la fuente de video y enviarla en
distintos formatos a cada una de las pantallas. Incorpora también la conversión en 3D
de la imagen. Posee igualmente,un modo de reacción en 3D del movimiento a partir
de la señal de sonido entrante.
El sistema emplea Arduino como base del hardware de conexión al ordenador o
computadora, a la que se conecta directamente sin necesidad de drivers adicionales.
La pantalla sirve de monitoraje de las entradas de video y de las modificaciones
que se realizan en tiempo real.
El Patch también incorpora un sistema de selección de hasta 40 videos adicionales
pregrabados, que se disparan a través de tablet.
The eVideo React it´s a interface to modify live video.You can combine 3 screens
and 3 simultaneous cameras, in addition to prerecorded videos.
The reaction capacity will depend of the computer and the external card used.
The module allows you to modify the video source in a versatile and agile way, and
it can send different formats to each of the screens. It also incorporates 3D
conversion from image and 3D reaction system for the movement from the incoming
sound signal.
The system uses Arduino as the basis of the computer connection hardware,
to which it connects directly without the need for additional drivers.
The screen of the interface its used to monitor video inputs and modifications
being done in real time.
The Patch also incorporates a selection system for up to 40 additional pre-recorded
videos, which are sent through a tablet.
